InGaAs APD & Pin photodiode
avalanche photodiode for OTDR use coaxial pigtail APD avalanche Photo diode with pigtail
Item No.: 183

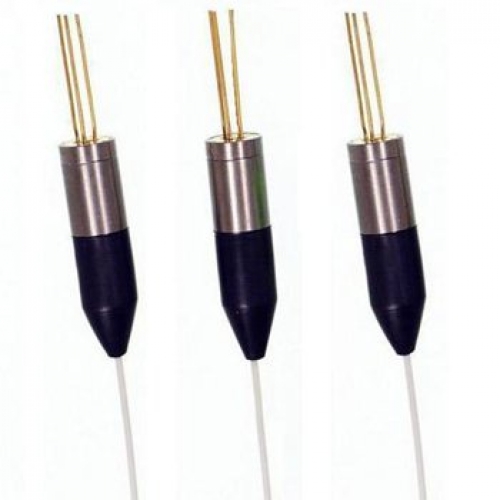

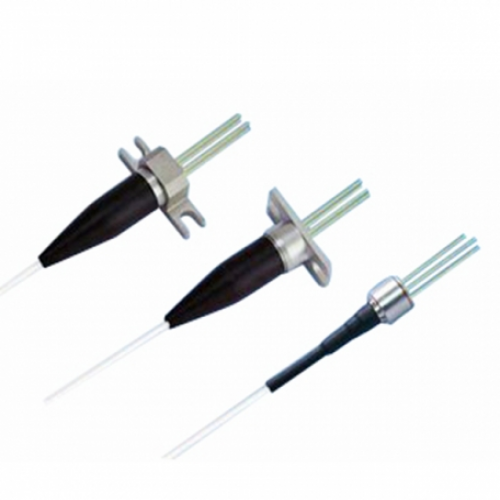

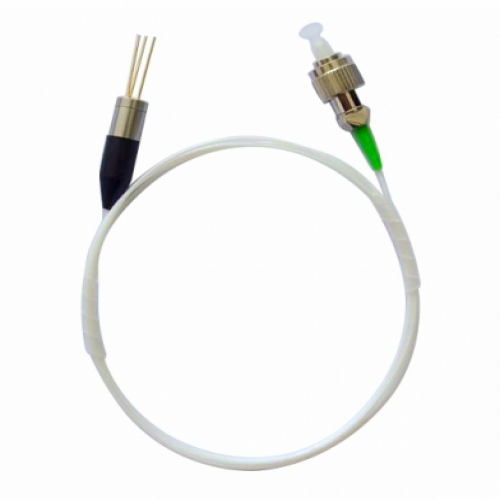

avalanche photodiode for OTDR use coaxial pigtail APD avalanche Photo diode with pigtail
Description
Product Details
Feature:Low dark current and high linearity
Application: OTDR
Model Number: DTNT-C22-APD
Features
- Low Capacitance: ≤1pF
- 2GHz Frequency Response
- Low Dark Current, Low Back Reflection
- High Responsivity: ≥0.85A/W 1310nm ≥0.90A/W 1550nm
- Laser Welding, Coaxial Package
- High Reliability and Long Operation Life
- Various Connector Type: FC,SC,ST,LC,MU
Applications
-CATV Forward/Return Path
- QAM 64/256 System
- OTDR
- FTTH Network
- EDFA Monitors
Absolute Maximum Rating: (Tc=25°C)
| Parameter | Symbol | Min. | Max. | Unit |
| Operating Temperature Range | Top | -40 | +85 | °C |
| Storage Temperature Range | Tstg | -40 | +85 | °C |
| Soldering Temperature Tmax= 10s | Ts | - | 260 | °C |
| Forward Current | Ifd | - | 10 | mA |
| Saturation Input Power | Psat | - | 10 | mW |
Supply Ability
50K PCS/Month
Packaging Details
Pack in static electricity package, according to customer packing requirement
