BOSA

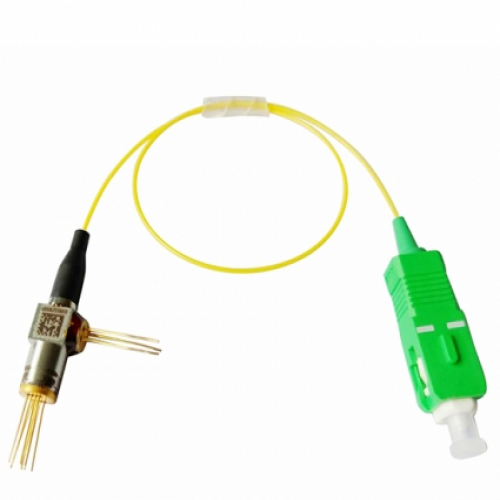

cooling big power Laser CWDM Analog Bilateral TEC BOSA D1550nmU1450147014901510 15901610nm DFB-LD
Item No.: 181
CWDM Analog Bilateral TEC BOSA D1550nmU1450147014901510 15901610nm DFB-LD
Description
Product details
Model Number:DTNT-B-TEC
Type:Laser Diode and Photodiode
Package Type:Pigtail
Type:Laser Diode and Photodiode
Package Type:Pigtail
Description
- CWDM TEC laser + photodiode
- Single fiber bidirectional transceiver component
Specification
- CWDM TEC laser + photodiode
- Single fiber bidirectional transceiver component
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 15V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 120mA |
| Wavelength | D1550nm/U1450/1470/1490/1510/ 1590/1610nm |
| Connector | SC FC ST |
Features
- The transmitter adopts miniature low-power TEC refrigeration thermostat control, temperature control accuracy of 0.1 °C, stable performance
- 1450/1470/1490/1510/1590/1610nm DFB-LD with direct modulation transmission
- Built-in optical isolator on the transmitter
- High responsivity at the receiving end, low dark current, low noise
- High out-of-band wavelength isolation
- Product stability and consistency
- Single-fiber two-way communication, system transmission capacity doubled
Standard
- Meet the GR-468 reliability test standard
- RoHS compliant
- General requirements for GR-326 single mode optical connectors and jumpers
- Comply with MIL-STD-883E Method 3015.7 packaging test related standards
Application
- WDM system
- FTTH
- 1550nm downlink reception, single-fiber bidirectional transmission of 1450/1470/1490/1510/1590/1610nm uplink transmission, widely used in fiber network upgrade, capacity expansion and introduction of integrated new services.
Supply Ability
10K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
