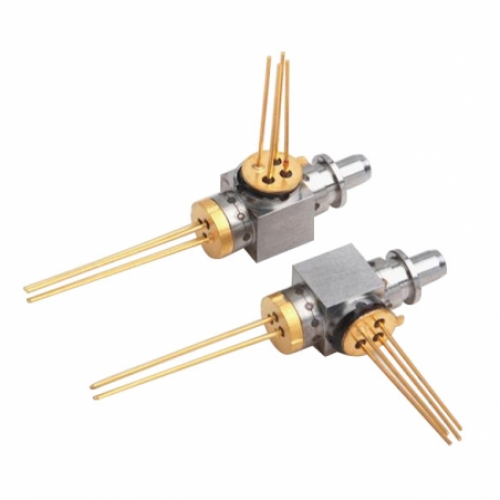

10G BOSA 1.25Gbps Tx 1310nm /10G Rx 1577nm BOSA
Item No.: 178
1.25Gbps Tx 1310nm DFB LD/10Gbps Rx 1577nm integrated WDM filter SC 5 Pin BOSA The Case is isolator with the GND PIN of APD-TIASuitable for Ethernet in the First Mile and point-to-point applications
Description
Descriptions
- 1.25Gbps Tx 1310nm DFB LD/10Gbps Rx 1577nm integrated WDM filter SC 5 Pin BOSA
- The Case is isolator with the GND PIN of APD-TIA
- Suitable for Ethernet in the First Mile and point-to-point applications
- Compliant the with ROHS (Restriction on Hazardous Substance) standard
- Compliant the MIL-STD-883E
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | TSTG | -40 | +85 | ℃ |
| Operating Temperature (ambient) | TOPR | -40 | +85 | ℃ |
| Supply Voltage V | VCC | -0.5 | 4.5 | V |
| Lead Soldering Temperature (Max10 sec) | TS | --- | 260 | ℃ |
| Forward Current (LD) | IFLD | --- | 150 | mA |
| Reverse Voltage (LD) | VRLD | --- | 2 | V |
| Forward Current (MPD) IFPD 2 mA | IFMPD | --- | 2 | mA |
| Reverse Voltage (MPD) | VRMPD | --- | 20 | V |
| Forward Current (PD) IFPD 2 mA | IFPD | --- | 10 | mA |
| Reverse Voltage (PD) | VRPD | --- | 20 | V |
MELECTRIC AND OPTICAL CHARACTERISTICS
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Transmitter | ||||||
| Threshold Current | ITH | --- | 8 | 15 | mA | TC=25℃ |
| --- | --- | 40 | TC= -40~85℃, | |||
| Forward Voltage | VF | --- | 1.2 | 1.5 | V | PF=PF (Min), TC =25℃ |
| Optical Output power | Pf | 1.8 | 4 | mW | CW, @ITH+20mA, 25℃, kink free | |
| Optical Output power | Pf | 1 | % | CW, @ITH+20mA, 85℃ | ||
| Center Wavelength (Note 2) | λC | 1260 | 1360 | nm | CW, TC=-40~85℃ | |
| Spectral Width (-20dB) (Note 2) | Δλ | --- | 1 | nm | CW, @ITH+20mA | |
| Side-mode suppression ratio(Note1) | SMSR | 35 | dB | TC=-40~85℃ | ||
| Rise/Fall Time | TR/TF | --- | 150 | ps | PF=2.0mW, Extinction Ratio > 9dB, 20%-80%, without filter | |
| Relative Intensity Noise(Note3) | RIN 12 (OMA) | 120 | dB/Hz | |||
| Monitor Current | IM | 100 | --- | 900 | uA | CW,Pf=Ith+20mA, VRMPD=1.5V, Tc=25C, |
| Monitor Dark Current | IDARK | --- | --- | 0.1 | uA | VRMPD=10V |
| PD Capacitance | CPD | --- | 10 | 15 | pF | VRMPD=10V,f=1MHz |
| Optical Return Loss tolerance | ORLT | --- | --- | 12 | dB | Tested at 1310nm |
| Tracking Error(Note 4) | ΔPf/Pf | -1 | --- | +1 | dB | -40~85℃, CW, Pf (Ith+20mA)@IM hold (Note 5) |
| Plug Repeatability | -0.5 | +0.5 | dB | Same fiber test 10 times, maximum- minimum | ||
| Plug Re-changeability | -1 | 1 | dB | 3 different fiber, each fiber test 10 time, maximum- minimum | ||
| Receiver | ||||||
| Supply Current | ICC | --- | --- | 70 | mA | No loads |
| Operation Wavelength | λ | 1575 | 1577 | 1580 | nm | |
| Saturation Power | PSAT | -8 | --- | --- | dBm | Tc=-40~85℃ (Test at 10.3125Gbps PRBS31 ER=6dB BER<10E-3) |
| Sensitivity | Sen | --- | -29.5 | dBm | ||
| Responsibility | Res | 0.8 | A/W | λ=1577nm | ||
| Output Resistance | ROUT | 45 | 50 | 55 | Ω | Single Ended |
| Upper -3dB Bandwidth | BW | --- | 6.5 | GHz | ||
| Rise/Fall time | tR,tF | 65 | ps | 20%~80% at 50Ω | ||
| Optical Return Loss | ORL | 20 | --- | --- | dB | λ=1577nm |
| Linearity(Note 5) | Lη | --- | --- | --- | Pin =Senstivity~OL | |
| Dark current of monitor | ID | 100 | nA | VPD=3.3V Tc=-40~85℃ | ||
| Accuracy of Monitor | AccMON | % | Tc=-40~85℃ | |||
| Optical Crosstalk | XTALK | 40 | --- | dB | 1310nm/1577nm | |
| WDM Filter Isolation | ISO(1310) | 40 | dB | |||
| ISO(1550) | 38 | dB | ||||
| ISO(1650) | 35 | dB | ||||
| ESD Requirement | ESD | 500 | V | |||
Note 1: The Slope efficiency drop is the slope efficiency will be decreased with the temperature increasing.
Note 2: The center wavelength and Side-mode suppression ratio should be tested under modulated conditions using 1.25Gbps, PRBS331-1, ER=9dB. optical power should between 0.6dBm to 4dBm.
Note 3: RIN12OMA is the ratio of noise to modulated optical signal in the presence of a back reflection.
Where:
RINxOMA=Relative Intensity Noise referred to optical modulation amplitude measured with x dB reflection,
PN=Electrical noise power in Watts with modulation off,
PM=Electrical power in Watts with modulation on,
BW=Low pass bandwidth of apparatus-high pass bandwidth of apparatus due to DC blocking capacitor [noise bandwidth of the measuring system(Hz)].
Note 4: Tracking Error ( A is Typical AOP ):
Note 5: Linearity is calculated by first determining slope between several sequential pair of points on power/current curve Lh= (max(h1, h2 .....hi) - min(h1, h2.....hi))/ have , hi = Ipd / Pin (Pin=-30~0dBm).
MECHANICAL& PIN DESCRIPTION REQUIREMENT
TEST REPORT IN sample
Minimum Required Values Results per Individual
| Tx Test Condition: Tc=-5, 25,75℃ | |||||||||
| S/N | Ith | Pf | Im | Wavelength | Spectral Width | SMSR | Kink | LIV curve | Rise/Fall Time |
| CW | Ith+20mA | 2.0mw | (-20dB) | 20%~80% | |||||
| (mA) | (mW) | (uA) | (nm) | (nm) | dB | (%) | (ps) | ||
| Rx Test Condition: Tc=-5, 25,75℃ | |||||||
| S/N | Sensitivity | Overload | Mon Idark | Icc | Linearity | Optical X-talk | Rise/Fall Time |
| 10.3125G PRBS31 ER=6dB BER<10E-3 | No load | -30~-8dBm | 1577nm/1310nm | 20%~80% | |||
| (dBm) | (dBm) | (uA) | (mA) | % | dB | (ps) | |
