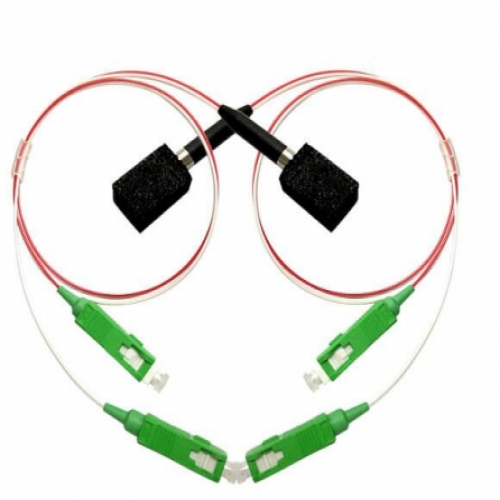

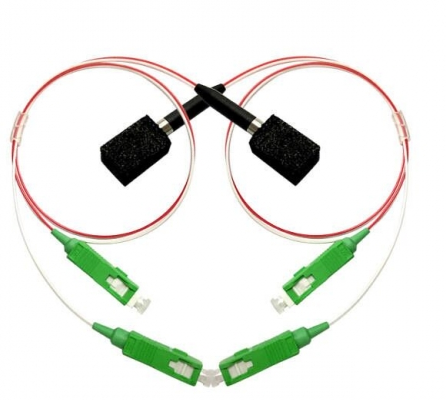

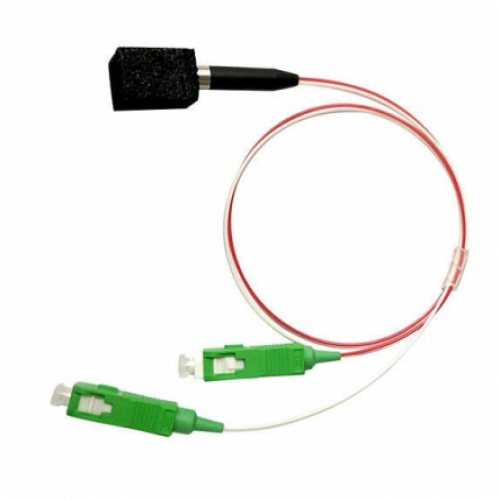

XGSPON Pigtailed (compatible with 10G EPON symmetry) ONU BOSA

Item No.: 176

Products 9.95Gbps/10.3125Gbps Tx 1270nm DFB LD/Rx 1577nm integrated WDM filter Pigtail 5 Pin BOSA

Add to Inquiry

Description

Descriptions

- 9.95Gbps/10.3125Gbps Tx 1270nm DFB LD/Rx 1577nm integrated WDM filter Pigtail 5 Pin BOSA
- The Case is isolator with the GND PIN of APD-TIA
- Compliant the with ROHS (Restriction on Hazardous Substance) standard
- Compliant the MIL-STD-883E

Features

- DFB uncooled laser diode
- High sensitive APD-TIA
- SC/APC Pigtail
- Support Industrial temperature

Application

- Telecommunication
- Data Communication
- GPON ONU ITU-T G984.5
- FTTH Bi-dirctional play

Absolute Maximum ratings(Tc=25℃,unless otherwise noted)

Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	Tstg	-40	85	℃
Operating Case Temperature	Top	0	85	℃
Reverse Voltage(LD)	VRL		2	V
Reverse Voltage(MLD)	VRD		15	V
Photodiode Forward Current(MPD)	IFD		10	mA
Forward Current(LD)	IFL		150	mA
Lead Soldering(Temperature)/(Time)	-		260/10	℃/Sec

Transmitter Optical And Electrical Characteristics
(Unless specified else，the specifications below are defined at TC=0-85℃)

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Output Optical Power	Pf	2.8		5	mW	CW,lop=lth+20mA
Threshold Current	lth		8	15	mA	CW,Tc=25℃
				45	mA	CW,Tc=0~70℃
Center Wavelenth
Side Mode Suppression Ratio	SMSR	35			dB	CW,pop=lth+20mA
Spectrum Width(-20dB)	Δλ			1	nm	CW,pop=lth+20mA
Operating Voltage	Vop		1.2	1.7	V	CW,lop=lth+20mA
Monitor Current	Imon	0.1		1	mA	DC,lop=lth+20mA
Rise/Fall time	Tr/Tf			50	ps	20%-80%
Monitor Dark Current	ld			100	nA	Vrd=5V
PD Capacitance	Ct		5	7	pF	Vrd=5V@1MHz
Tracking Error	TE	-1.5		1.5	dB	APC,0℃/+25℃ +25℃/+85℃

Receiver Optical And Electrical Characteristics
(Unless specified else，the specifications below are defined at TC=0-85℃)

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Wavelength		1575	1577	1580	V
Supply Voltage	Vcc	3	3.3	3.6	mA
TIA Supply Current	Icc		27	45	dBm	Vcc=3.3V
Sensitivity	Sen			-30	V	λ=1577nm,9.95Gbps/10.3125Gbps PRBS=2^31-1,ER≥6dB,BER≤10^-3,Vbr-3V,CW
Breakdown voltage	Vbr	25	33	45	dBm	l=10uA
Overload Power	Pol	-7			dB	λ=1577nm,9.95Gbps/10.3125Gbps PRBS=2^31-1,ER≥6dB,BER≤10-3,Vbr-3V,CW
Optical Return Loss	ORL			-20	dB	λ=1577nm
Optical Crosstalk From internal Laser	Xopt			-40	dB	1270nm/1577nm
Dark Current	ld			100	nA	Tc=25℃
Rx filter specication@1260~1560nm	Isolation	35			dB	1260~1560nm
Rx filter specication@1595~1660nm	Isolation	35			dB	1260~1560nm
Rx filter specication@1575~1580nm	Isolation			0.35	dB	1260~1560nm

Product structure outline drawing

Note: he transmitting end adopts laser welding process..
