Pigtail SC-UPC GPON ONU BOSA 230mm Super TIA
Item No.: 173

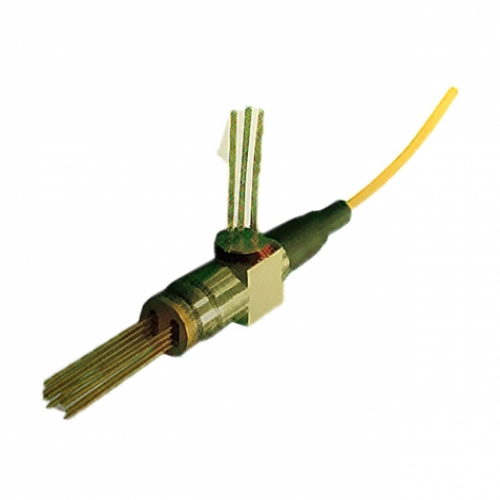

Super TIA Pigtail SC-UPC GPON ONU BOSA 230mm
Description
Product detail
2.5G DFB 1310T/1490R PIN-Super TIA SC/UPC 230mm GPON ONU BOB BOSA
Features
Application
Absolute Maximum ratings(Tc=25℃,unless otherwise noted)
Transmitter[Tx]OpticalAndElectricalCharacteristics(CW)
(Unless specified else，the specifications below are defined at TC=25±3℃)
Receiver[Rx] Optical And Electrical Characteristics(Tc=25℃±3℃)
(Unless specified else，the specifications below are defined at TC=25±3℃)
- Single fiber SC/UPC pigtail type
- Integrated G984.5 compliant WDM Filter
- High output power uncooled DFB Laser Diode
- High sensitive PIN-STIA with the Silicon Capacitor
- RoHS Compliant Products Available
Application
- Telecommunication
- Data Communication
- GPON ONU ITU-T G984.5
- FTTH Bi-dirctional play
Product Standards
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS Standard
- Compliant with GR-326 connector qualification Standard
Absolute Maximum ratings(Tc=25℃,unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | -10 | 85 | ℃ |
| LD Reverse Voltage | VRL | － | 2 | V |
| Photodiode Reverse Voltage(PD) | VRD | － | 15 | V |
| Photodiode Forward Current (PD) | IFD | － | 2 | mA |
| LD Forward Current | IFL | － | 150 | mA |
| TIA Operating voltage | VCC | -0.4 | 4 | V |
| Hand Lead Soldering(Temperature)/(Time) | － | － | 260/10 | ℃/Sec |
| Pigtail Fiber contact Temperature | － | 85 | － | ℃ |
| Fiber Bending Radius | － | 30 | － | mm |
| LD TO-can Pull Force | － | 30 | － | Kgf |
| PD TO-can Pull Force | － | 15 | － | Kgf |
| Shear Force | － | 30 | － | Kgf |
Transmitter[Tx]OpticalAndElectricalCharacteristics(CW)
(Unless specified else，the specifications below are defined at TC=25±3℃)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Output OpticalPower | Pf | 1.6 | － | 3.5 | mW | CW,Iop=Ith+20mA |
| 1 | － | － | mW | CW,Tc=85,Iop=Ith+20mA | ||
| Threshold Current | Ith | － | 8 | 15 | mA | CW,Tc=25℃ |
| － | － | 45 | mA | CW,Tc=-10℃~85℃ | ||
| Center Wavelength | λc | 1300 | 1310 | 1320 | nm | CW,Iop=Ith+20mA Tc=25℃ |
| 1290 | － | 1330 | nm | CW,Iop=Ith+20mA Tc=-10~85℃ | ||
| Operating Voltage | Vop | － | 1.2 | 1.6 | V | CW,Iop=Ith+20mA |
| Spectrum Width(RMS) | Δλ | － | 0.32 | 1 | nm | CW,Iop=Ith+20mA, |
| Side Mode Suppression Ratio | SMSR | 35 | 43 | － | dB | Iop=Ith+20mA, |
| Monitor Current | Imon | 0.1 | － | 1.2 | mA | VR=5V,CW,Iop=Ith+20mA |
| Rise/Fall time | Tr/Tf | － | － | 0.2 | ns | 20%-80% |
| Monitor Dark Current | Id | － | － | 100 | nA | Vrd=5V |
| PD Capacitance | Ct | － | 10 | 20 | pF | Vrd=5V@1MHz |
| TrackingError | TE | -1.5 | － | 1.5 | dB | APC,-10/+25,+25/85℃ |
Receiver[Rx] Optical And Electrical Characteristics(Tc=25℃±3℃)
(Unless specified else，the specifications below are defined at TC=25±3℃)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Operating Wavelength | λ | 1480 | 1490 | 1500 | nm | － |
| Supply Voltage | Vcc | 3 | 3.3 | 3.6 | V | － |
| Supply Current | Icc | 25 | － | 50 | mA | － |
| Sensitivity | Sen | － | － | -29.5 | dBm | BR=10^-10,2.5Gbps,PRBS2^23-1,ER=10dB,Tc=25℃ |
| Saturation Power | Psat | -7 | － | － | dBm | |
| Optical Isolation From External Source | ISO1 | 25 | － | － | dB | λ=1441～1450nmλ=1530～1539nm |
| ISO1 | 35 | － | － | dB | λ=1260～1440nmλ=1540～1625nm | |
| Optical Return Loss | RL1 | － | － | -12 | dB | λ=1310nm |
| RL2 | － | － | -20 | dB | λ=1490nm | |
| Optical Crosstalk From Internal Laser | Xopt | － | － | -40 | dB |

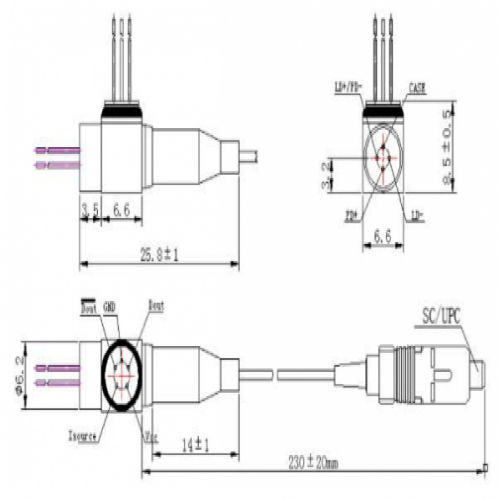

Product structure outline drawing
Note: The product BASE adopts the MIM structure, the transmitting end adopts the laser welding process, and the receiving end adopts the gluing process.
