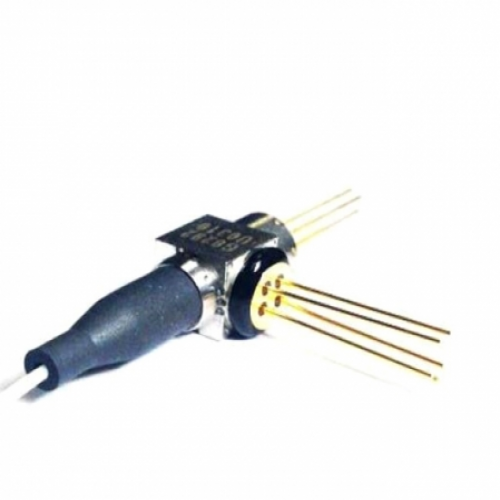

Epon Digital Up 1490 1.25G Down 1310 1.235G DFB EPON OLT BOSA with Receptacle
Item No.: 167
Digital Up 1490 1.25G Down 1310 1.235G DFB EPON OLT BOSA with Receptacle
Description
Product details
Model Number:EPON OLT BOSA
Type:BOSA
Description
- The product is a point-to-point BOSA component with an upstream 1490nm wavelength/working rate of 1.25Gb/s and a downstream 1310nm/working rate of 1.235Gb/s.
- The starter uses a DFB laser and the end uses an APD-TIA diode.
- Chip information:
LD: 1310nm 1.25Gpbs DFB 4PIN
PT: 1.25Gpbs APD-TIA
- Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, without isolator.
Type:BOSA
Description
- The product is a point-to-point BOSA component with an upstream 1490nm wavelength/working rate of 1.25Gb/s and a downstream 1310nm/working rate of 1.235Gb/s.
- The starter uses a DFB laser and the end uses an APD-TIA diode.
- Chip information:
LD: 1310nm 1.25Gpbs DFB 4PIN
PT: 1.25Gpbs APD-TIA
- Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, without isolator.
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 150mA |
| Wavelength | UP1490nm Down 1310nm |
Features
- Laser welding solution
- Point-to-point application
- High optical isolation
- High sensitivity APD-TIA
- Working temperature: -40 ° C ~ 85 ° C
- Plug-in SC BOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
- FTTx, Optical Network
Supply Ability
506KK PCS/Month
Packaging & Delivery
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
