BOSA

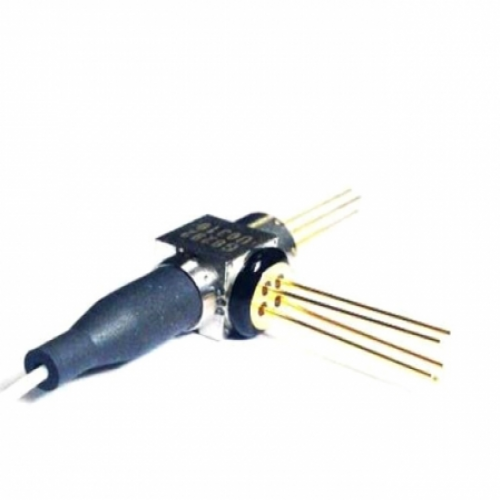

Pigtail GPON ONU BOSA Down 1310 1.25GUp 1490 2.5G for optical fiber communication
Item No.: 166
Pigtail GPON ONU BOSA Down 1310 1.25GUp 1490 2.5G for optical fiber communication
Description
Product details
Model Number:BA-33 series T1.25G/R2.5G
- Type:BOSA
Description
- This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
- The transmitter section uses a multiple quantum well 1310nm DFB laser supporting burst-mode operation.
- The receiver section uses a TO-can built in a long wavelength PIN diode and a 2.5Gbps transimpedance amplifier.
- Type:BOSA
Description
- This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
- The transmitter section uses a multiple quantum well 1310nm DFB laser supporting burst-mode operation.
- The receiver section uses a TO-can built in a long wavelength PIN diode and a 2.5Gbps transimpedance amplifier.
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 150mA |
| Wavelength | Up 1490nm Down 1310nm |
| Connector | FC SC |
Features
- Single fiber pigtail type bi-directional transmission design for digital communication.
- Asymmetric 2.5Gbps downstream and 1.25Gbps upstream data link transmission.
- Laser welded transmitter and epoxy cured receiver package.
- Integrated micro-optics WDM filters for dual wavelength Tx/Rx operation at 1310/1490nm.
- 1310nm InGaAsP/InP MQW DFB laser diode transmission with high bandwidth InGaAs monitor photodiode;1490nm digital APD with integrated 2.5Gbps, 3.3V continuous mode transimpedance-amplifier.
- High optical isolation from external source and low optical cross-talk from internal source-5°C to +75°C commercial temperature and -40°C to +85°C industrial operating temperature available with excellent temperature dependent power tracking error.
Standard
- Compliant with ITU-T G984.5 telecommunication protocol
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with Telcordia GR-326 connector qualification standard
- Compliant with RoHS6 standard
Application
- GPON BOB ONU optical modem, class B+,C+
- GPON ONU transceiver
- FTTH Bi-directional play
Supply Ability
50K PCS/Month
Packaging & Delivery
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
- Single fiber pigtail type bi-directional transmission design for digital communication.
- Asymmetric 2.5Gbps downstream and 1.25Gbps upstream data link transmission.
- Laser welded transmitter and epoxy cured receiver package.
- Integrated micro-optics WDM filters for dual wavelength Tx/Rx operation at 1310/1490nm.
- 1310nm InGaAsP/InP MQW DFB laser diode transmission with high bandwidth InGaAs monitor photodiode;1490nm digital APD with integrated 2.5Gbps, 3.3V continuous mode transimpedance-amplifier.
- High optical isolation from external source and low optical cross-talk from internal source-5°C to +75°C commercial temperature and -40°C to +85°C industrial operating temperature available with excellent temperature dependent power tracking error.
Standard
- Compliant with ITU-T G984.5 telecommunication protocol
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with Telcordia GR-326 connector qualification standard
- Compliant with RoHS6 standard
Application
- GPON BOB ONU optical modem, class B+,C+
- GPON ONU transceiver
- FTTH Bi-directional play
Supply Ability
50K PCS/Month
Packaging & Delivery
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
