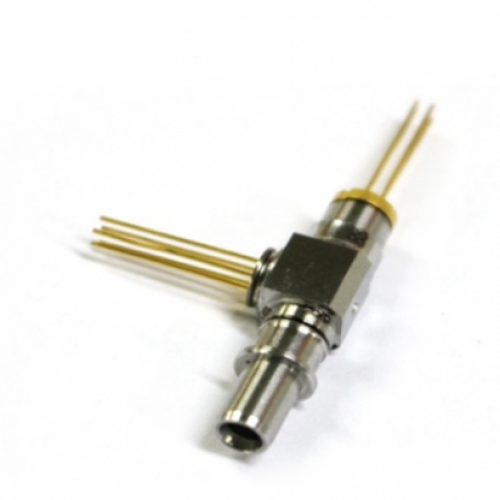

Digital DFB Up 1310nm 1.25G Down 1577nm 10G EPON asymmetric ONU BOSA with Receptacle
Item No.: 164
Digital DFB Up 1310nm 1.25G Down 1577nm 10G EPON asymmetric ONU BOSA with Receptacle
Description
Product details
Model Number: EPON ONU BOSA
Type:BOSA
Package Type: Receptacle
Description
- ONU BOSA with an upstream 1310 wavelength/operating rate of 1.25Gbps, and a downstream 1577nm operating rate of 10G.
- The DFB laser is used at the origin, and the PIN-TIA diode is used at the receiving end.
- Chip information:
LD: 1310nm 1.25G DFB 4PIN
PT: 10Gbps APD-TIA
- Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Type:BOSA
Package Type: Receptacle
Description
- ONU BOSA with an upstream 1310 wavelength/operating rate of 1.25Gbps, and a downstream 1577nm operating rate of 10G.
- The DFB laser is used at the origin, and the PIN-TIA diode is used at the receiving end.
- Chip information:
LD: 1310nm 1.25G DFB 4PIN
PT: 10Gbps APD-TIA
- Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 10mA |
| Max. Reverse Current | 150mA |
| Wavelength | Up 1310nm 1.25G Down 1577nm 10G |
Features
- Laser welding solution
- Point-to-point application
- High optical isolation
- Working temperature: 0°C~70°C
- Receptacle SC BOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
- Remote communication
- Point to point communication
Supply Ability
50K PCS/Month
Packaging & Delivery
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
