BOSA

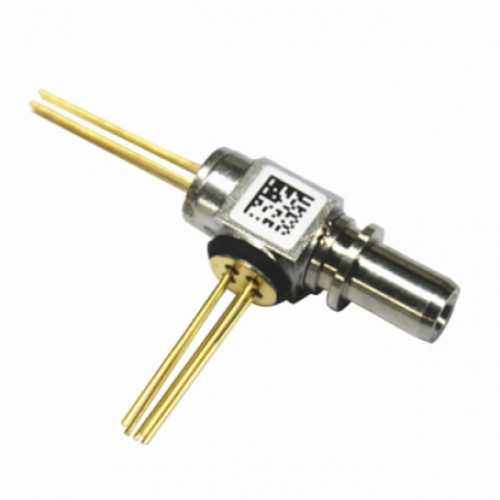

Digital 1310nm 1.25G Down 1490nm 1.25G EPON ONU BOSA with Receptacle
Item No.: 157
Digital 1310nm 1.25G Down 1490nm 1.25G EPON ONU BOSA with Receptacle
Description
Product details
Model Number:EPON ONU BOSA
Type:BOSA
Package Type:Receptacle
Description
- ONU BOSA component with an upstream 1310nm wavelength/operating rate of 1.25Gb/s and a downstream 1490nm/operating rate of 1.25Gb/s.
- The starter uses a DFB laser and the receiving end uses a PIN-TIA diode.
- Chip information:
LD: 1310nm 1.25Gpbs FP 4PIN
PT:1.25Gpbs PIN-TIA
- Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Type:BOSA
Package Type:Receptacle
Description
- ONU BOSA component with an upstream 1310nm wavelength/operating rate of 1.25Gb/s and a downstream 1490nm/operating rate of 1.25Gb/s.
- The starter uses a DFB laser and the receiving end uses a PIN-TIA diode.
- Chip information:
LD: 1310nm 1.25Gpbs FP 4PIN
PT:1.25Gpbs PIN-TIA
- Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 100mA |
| Wavelength | UP 1310nm Down 1490 |
Features
- Laser welding solution
- Up and down rates are both 1.25G
- High optical isolation
- Working temperature: -40~85°C
- Receptacle SC BOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
Remote Communication, FTTx, EPON
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products
- Laser welding solution
- Up and down rates are both 1.25G
- High optical isolation
- Working temperature: -40~85°C
- Receptacle SC BOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
Remote Communication, FTTx, EPON
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products
