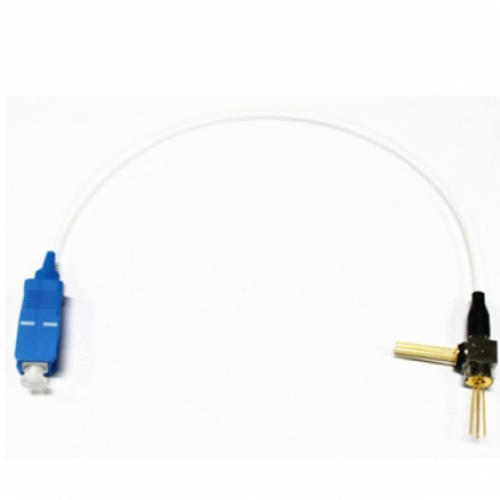

Digital 1310nm1490nm FP EPON ONU BOSA with Pigtail
Item No.: 156
Digital 1310nm1490nm FP EPON ONU BOSA with Pigtail
Description
Product details
Model Number: GPON OLT BOSA
Type: BOSA
Package Type: Receptacle
Description
- This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
- Transmitter is DFB LD, receiver is APD-TIA diode
- Chip Information:
LD: 1310nm 2.5Gpbs DFB 4PIN
PT: 1.25Gpbs APD-TIA
- Product structure remarks: SC/PC ferrule sleeve assembly, machined / powder part structure, receiving end adhesive structure, without isolator.
Type: BOSA
Package Type: Receptacle
Description
- This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
- Transmitter is DFB LD, receiver is APD-TIA diode
- Chip Information:
LD: 1310nm 2.5Gpbs DFB 4PIN
PT: 1.25Gpbs APD-TIA
- Product structure remarks: SC/PC ferrule sleeve assembly, machined / powder part structure, receiving end adhesive structure, without isolator.
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 150mA |
| Wavelength | Down 1310/Up1490 |
| Connector | SC or FC |
Features
- Laser welding solution
- Point-to-point application
- High optical isolation
- High sensitivity APD-TIA
- Working temperature: 0~75°C
- Receptacle SC BOSA
Standard
- Compliant with ITU-T G984.5 telecommunication protocol
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
FTTx,Optical Network
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked;8 anti-static trays can be loaded into 80 products.
