TOSA

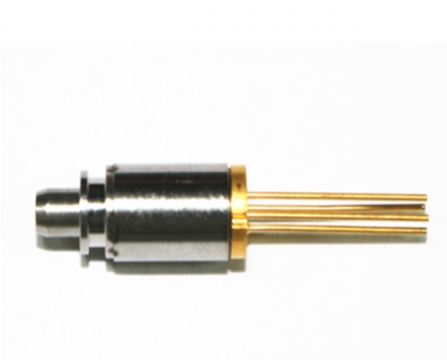

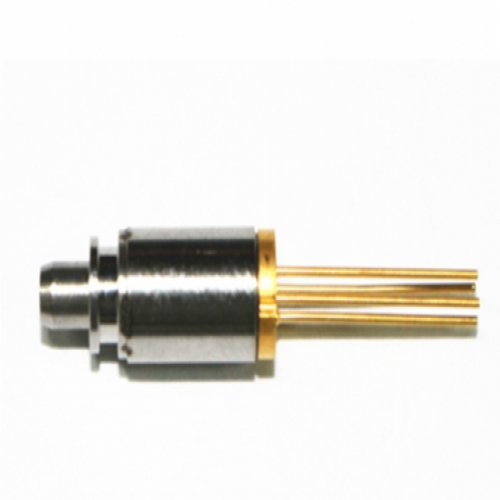

Digital Double Fiber DFBFP 1310nm 155M 1.25G 2.5G LC TOSA with Receptacle
Item No.: 149
Digital Double Fiber DFBFP 1310nm 155M 1.25G 2.5G LC TOSA with Receptacle
Description
Product details
Model Number:DTNT-TOSA-LC
Type:Laser Diode
Package Type:Receptacle
Type:Laser Diode
Package Type:Receptacle
Description
- The product is a 1310nm wavelength / working rate 1.25Gb / s optical emission module
- Start with DFB/FP laser
- Chip information:
LD: 1310nm 155M, 1.25G, 2.5G DFB/FP 4PIN
- Product structure remarks: LC/PC ferrule assembly, machined / powder structure, without isolator
Specification
- The product is a 1310nm wavelength / working rate 1.25Gb / s optical emission module
- Start with DFB/FP laser
- Chip information:
LD: 1310nm 155M, 1.25G, 2.5G DFB/FP 4PIN
- Product structure remarks: LC/PC ferrule assembly, machined / powder structure, without isolator
Specification
| Parameter | Rating |
| Max. Reverse Voltage | 2V |
| Max. Forward Current | 140mA |
| Wavelength | 1310nm |
Features
- Laser welding solution
- Transmission rate is 155M, 1.25G, 2.5G
- High optical isolation
- Working temperature: 0°C~75°C
- Receptacle LC TOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Applications
- Remote communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
