ROSA

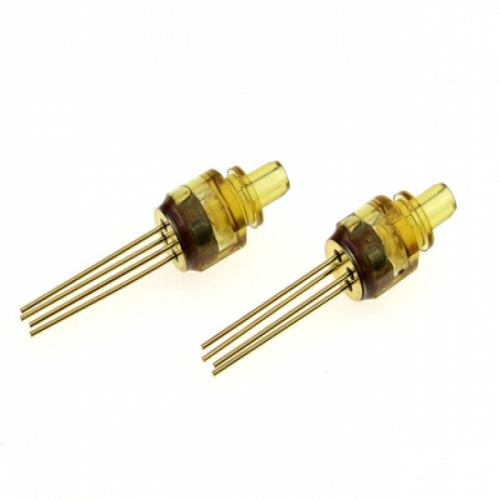

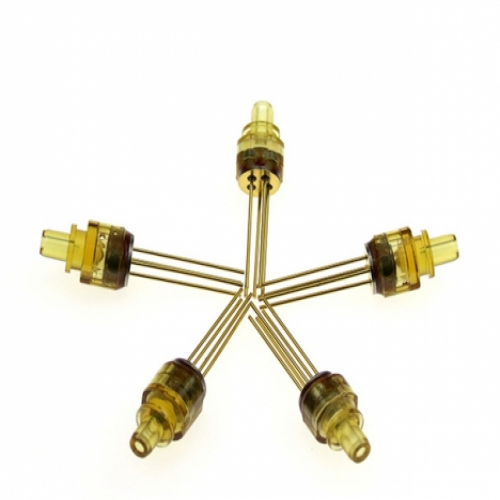

Receptacle type ROSA with SC Adapter
Item No.: 146
PIN ROSA with SC adapter ,has four Wavelength:1310nm,1550nm,1625nm,1650nm.
Description
Product details
Type: ROSA Laser Diode
Application:Remote communication, point to point communication
Wavelength:1310nm,1550nm,1625nm,1650nm
Description
- PIN-TIA diode.
- Product structure remarks: LC/PC ferrule assembly, adhesive structure
- PIN-TIA diode.
- Product structure remarks: LC/PC ferrule assembly, adhesive structure
Features
- Laser welding solution
- High optical isolation
- High sensitivity
- Working temperature: 0 ° C ~ 75 ° C
- Receptacle ROSA
Main photoelectric and environmental indicators of product
Table1 Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)
Product outline drawing
Remark: Glue bonding process is applicated to receiving end.
Unit: mm,Undeclared tolerance: ±0.05mm.
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Applications
- Remote communication
- Point to point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
- The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
- Laser welding solution
- High optical isolation
- High sensitivity
- Working temperature: 0 ° C ~ 75 ° C
- Receptacle ROSA
Main photoelectric and environmental indicators of product
Table1 Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | 0 | 70 | ℃ |
| Reverse Voltage | Vr | 30 | V | |
| Forward Current | If | 10 | mA | |
| Lead Soldering (Temperature)/(Time) | --- | --- | 260/10 | ℃/Sec |
Receiving end(Unless specified else，the specifications below are defined at TC=25±3℃ )
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Operating Wavelength | λ | 1270 | 1550 | 1650 | nm | Tc=-5℃ to 75℃ |
| Responsivity at 1550 nm | Res | 0.8 | --- | --- | A/W | λ=1550nm |
| Responsivity at 1310，1625 nm | Res2 | 0.7 | --- | --- | A/W | λ=1310nm ，1625nm |
| Responsivity at 1650 nm | Res3 | 0.6 | --- | --- | A/W | λ=1650nm |
| Optical Return Loss | ORL | --- | --- | -20 | dB | λ=1550nm |
| Dark Current | Id | --- | 0.3 | 0.5 | nA | Vr =-5V，25℃ |
| PIN capacitance | C | 0.5 | 0.6 | pF | Vr =-5V F=1MHz | |
| Saturated Optical Power | Ps | 3 | dBm | Vr =-5V |
Product outline drawing
Remark: Glue bonding process is applicated to receiving end.
Unit: mm,Undeclared tolerance: ±0.05mm.
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Applications
- Remote communication
- Point to point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
- The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
