ROSA

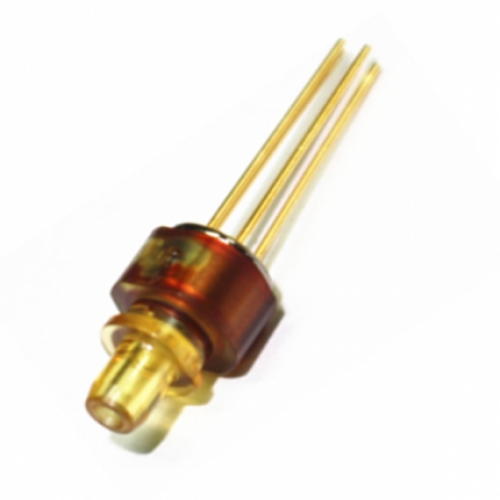

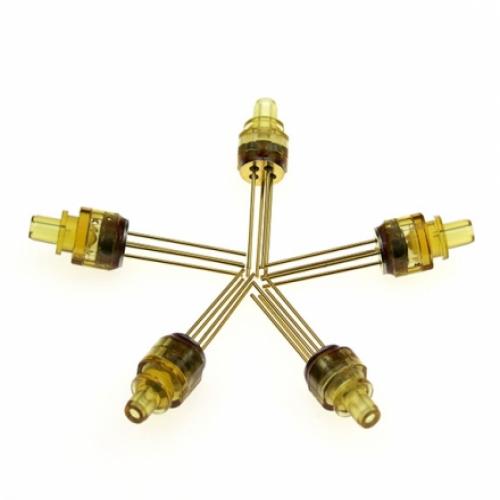

Receptacle type ROSA with SC Adapter Receptacle type ROSA with SC Adapter Receptacle type ROSA with SC Adapter Receptacle type ROSA with SC Adapter Receptacle type ROSA with SC Adapter
Item No.: 145
PIN ROSA with SC adapter ,has four Wavelength:1310nm,1550nm,1625nm,1650nm.
Description
Product details
Type: ROSA
Application:Remote communication, point to point communication
Wavelength:1310nm,1550nm,1625nm,1650nm
Application:Remote communication, point to point communication
Wavelength:1310nm,1550nm,1625nm,1650nm
Description
- PIN-TIA diode.
- Product structure remarks: LC/PC ferrule assembly, adhesive structure
- PIN-TIA diode.
- Product structure remarks: LC/PC ferrule assembly, adhesive structure
Features
- Laser welding solution
- High optical isolation
- High sensitivity
- Working temperature: 0 ° C ~ 75 ° C
- Receptacle ROSA
Main photoelectric and environmental indicators of product
Table1 Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)
Product outline drawing
Remark: Glue bonding process is applicated to receiving end.
Unit: mm,Undeclared tolerance: ±0.05mm.
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Applications
- Remote communication
- Point to point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
- The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
- Laser welding solution
- High optical isolation
- High sensitivity
- Working temperature: 0 ° C ~ 75 ° C
- Receptacle ROSA
Main photoelectric and environmental indicators of product
Table1 Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | 0 | 70 | ℃ |
| Reverse Voltage | Vr | 30 | V | |
| Forward Current | If | 10 | mA | |
| Lead Soldering (Temperature)/(Time) | --- | --- | 260/10 | ℃/Sec |
Receiving end(Unless specified else，the specifications below are defined at TC=25±3℃ )
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Operating Wavelength | λ | 1270 | 1550 | 1650 | nm | Tc=-5℃ to 75℃ |
| Responsivity at 1550 nm | Res | 0.8 | --- | --- | A/W | λ=1550nm |
| Responsivity at 1310，1625 nm | Res2 | 0.7 | --- | --- | A/W | λ=1310nm ，1625nm |
| Responsivity at 1650 nm | Res3 | 0.6 | --- | --- | A/W | λ=1650nm |
| Optical Return Loss | ORL | --- | --- | -20 | dB | λ=1550nm |
| Dark Current | Id | --- | 0.3 | 0.5 | nA | Vr =-5V，25℃ |
| PIN capacitance | C | 0.5 | 0.6 | pF | Vr =-5V F=1MHz | |
| Saturated Optical Power | Ps | 3 | dBm | Vr =-5V |
Product outline drawing
Remark: Glue bonding process is applicated to receiving end.
Unit: mm,Undeclared tolerance: ±0.05mm.
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Applications
- Remote communication
- Point to point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
- The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
