ROSA

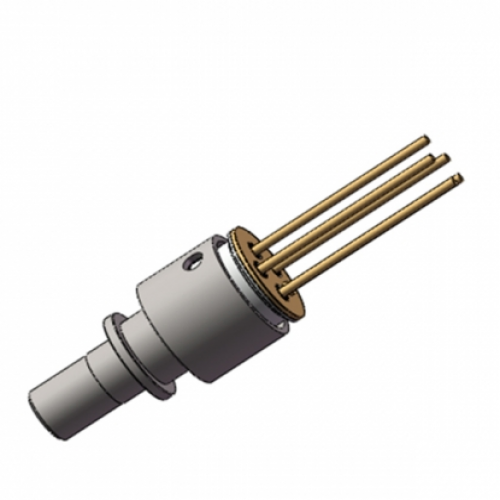

10G LC ROSA Digital Metal Shell with Receptacle
Item No.: 142
Digital Metal Shell 10G LC ROSA with Receptacle
Description
Product details
Model Number:LC ROSA
Type:Pin Diode
Package Type:Receptacle
Wavelength:1310nm
Type:Pin Diode
Package Type:Receptacle
Wavelength:1310nm
Description
- The product is an uplink 1310nm wavelength / operating rate 10.3125Gb / s light receiving component
- PIN-TIA diode
- Chip information: PT: 10.3125Gpbs PIN-TIA
- Product structure remarks: LC/PC ferrule assembly, machining/powder parts, viscose structure
Specification
- The product is an uplink 1310nm wavelength / operating rate 10.3125Gb / s light receiving component
- PIN-TIA diode
- Chip information: PT: 10.3125Gpbs PIN-TIA
- Product structure remarks: LC/PC ferrule assembly, machining/powder parts, viscose structure
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 15V |
| Max. Forward Current | 10mA |
| Max. Reverse Current | 150mA |
| Wavelength | 1310nm |
Features
- Laser welding solution
- Working rate is 10.3125G
- High optical isolation
- Working temperature: 0°C~75°C
- Receptacle LC ROSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Applications
Remote communication
Point-to-point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
- The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
- Laser welding solution
- Working rate is 10.3125G
- High optical isolation
- Working temperature: 0°C~75°C
- Receptacle LC ROSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Applications
Remote communication
Point-to-point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
- The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
