CATV DFB and FP laser diode
DFB laser diode 1310nm 1.25G dual-wavelength DFB analog Laser diode with pigtail or receptacle
Item No.: 137

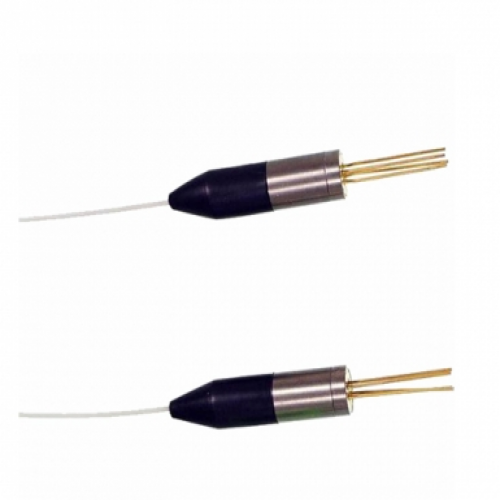

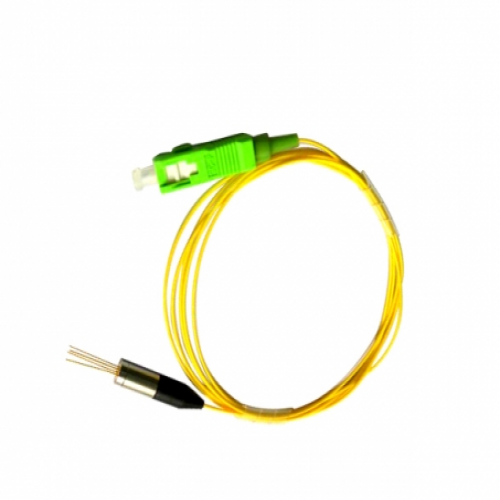

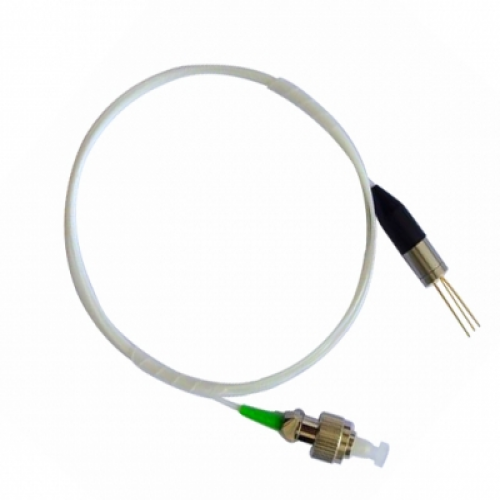

1310nm 1.25G dual-wavelength DFB analog Laser diode with pigtail or receptacle
Description
Product details
Model Number: DTNT-LD-1310
Type: Laser Diode
Package Type: Through Hole
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 2mA |
Features
- Uncooled 1310nm DFB MQW Laser Diode, Built-in InGaAs PD Monitor
- High-Speed Operation Up to 1.25Gbps
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC, FC, ST, LC, and MU
- High-Speed: High Reliability
- Long Operation Life: Various Connector Type
Applications
- Transceiver Module
- CATV, GSM, CDMA
- Telecommunication
- Gigabit Ethernet
Supply Ability
100K PCS/Month
Packaging Details
Pack in static electricity package, 10PC/Box, 100box/carton.
