CATV DFB and FP laser diode

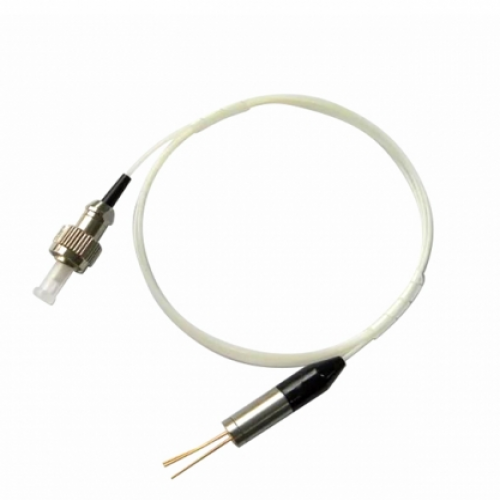

6mw DFB 1310nm pigtail laser diode
Item No.: 136
6mw DFB 1310nm pigtail laser diode
Description
Product details
Model Number: DTNT-LD-DFB
Type: Laser Diode
Package Type: static electricity
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 2mA |
| Colour | yellow, white, blue |
| Application | monitering system |
Features
- Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Supply Ability
6KK PCS/Month
Packaging Details
Pack in static electricity package and then carton box ,100pcs/Box.
- Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Threshold Current | Ith | 5 | -- | 15 | mA | CW |
| Forward Voltage | Vop | 1.1 | 1.6 | V | CW,If=Iop | |
| Optical Output Power | Pf | -- | 2.0 | 10 | mW | CW,If=Ith+20mA |
| Center Wavelength | λc | λ-3 | 1310 | λ+3 | nm | CW,P0 = Pf |
| Wavelength temperature coefficient | λ/T | -- | 0.10 | 0.14 | nm/°C | |
| Rise/Fall Time(10~90)% | Tr/Tf | -- | -- | 0.4 | nS | If=Ith,Po=Pf(10-90)% |
| Slope Efficiency | SE | 0.25 | -- | -- | mW/mA | P0 =5.0mW 1270-1450nm,CW |
| Monitor Current | Im | 0.1 | 1 | mA | CW,P0 = Pf | |
| Capacitance PD | CPD | 10 | 15 | PF | VRD=5V | |
| PD Dark Current | Id | 1 | nA | VRD=5V | ||
| Side Mode Suppression Ration | SMSR | 30 | 35 | dB | CW,Po=5mW |
Supply Ability
6KK PCS/Month
Packaging Details
Pack in static electricity package and then carton box ,100pcs/Box.
