CATV DFB and FP laser diode

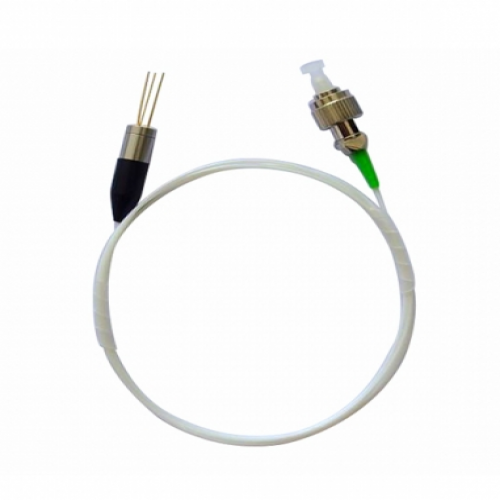

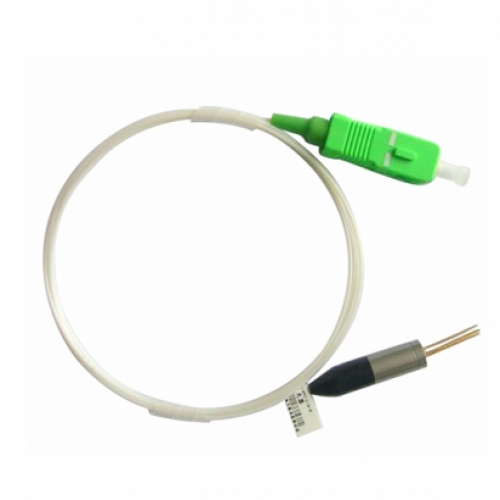

1.25G 1310nm DFB Analog Coaxial Laser Diode With Pigtail
Item No.: 135
1.25G 1310nm DFB Analog Coaxial Laser Diode With Pigtail:- 1270-1610nm Laser Diode- 1.25G/2.5G/3G/4G- output power:0.5-4mW- With excellent quality and competitive price- RoHS compliant
Description
Product details
Model Number: DTNT-LD-DFB-1310
Type: Laser Diode
Package Type: static electricity package
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 2mA |
| Colour | yellow, white, blue |
| Application | CATV transmission |
Features
Applications
Supply Ability
10K PCS/Month
Packaging Details
Pin package, static electricity package, 10PC/box, carton box just according to your quantity.
- 1270-1610nm Laser Diode
- 1.25G/2.5G/3G/4G
- Optical output power:0.5-4mW
- SC,FC/APC Pigtail
- DFB/FP Coaxial Package
- InGaAs/InP MQW LD
- High Reliability and Excellent Reliability
- Low Threshold Current And Low RIN Noise
- Maximum Soldering Temperature /Time:240/10s
- Operating Temperature:-40~ 85.
Applications
- Transceiver Module
- CATV,GSM,CDMA etc
- Telecommunication
- Gigabit Ethernet
Supply Ability
10K PCS/Month
Packaging Details
Pin package, static electricity package, 10PC/box, carton box just according to your quantity.
