GPON Triplexer OSA
Item No.: 129

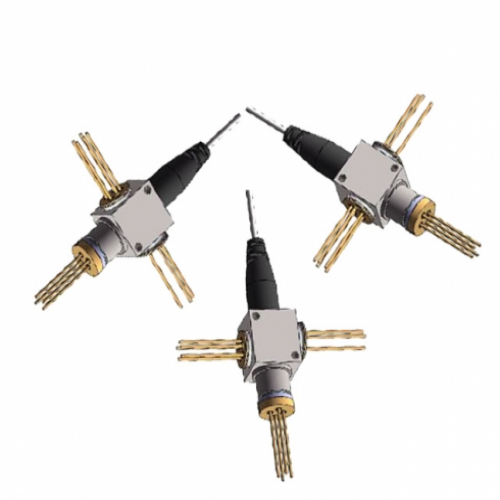

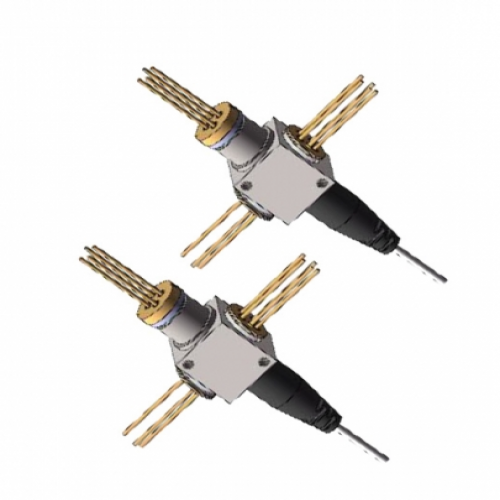

GPON Triplexer OSA：TP-33series T1.25G/R2.5G/Analog；TP-33Xis a high performance Triplexer for triple-play in single fiber byusing1310nm transmitter, 1490nm continuous mode digital receiver and 1550nm analog receiver.
Description
Product details
Description
●TP-33Xis a high performance Triplexer for triple-play in single fiber byusing1310nm transmitter, 1490nm continuous mode digital receiver and 1550nm analog receiver.
●The transmitter section uses a multiple quantum well 1310nm DFB laser supporting burst-mode operation. The first receiver section uses a TO-can built in a long wavelength PIN diode and a 2.5Gbps Super transimpedance amplifier. The second receiver section uses an analog PIN photodiode mounted in a TO-can for video receiver.
●TP-33Xis a high performance Triplexer for triple-play in single fiber byusing1310nm transmitter, 1490nm continuous mode digital receiver and 1550nm analog receiver.
●The transmitter section uses a multiple quantum well 1310nm DFB laser supporting burst-mode operation. The first receiver section uses a TO-can built in a long wavelength PIN diode and a 2.5Gbps Super transimpedance amplifier. The second receiver section uses an analog PIN photodiode mounted in a TO-can for video receiver.
Features
●Single fiber pigtail type tri-directional OSA(Tridi) designed for full-duplex digital communication with an additional analog video receiver
● Asymmetric2.5Gbps downstream and 1.25Gbps upstream data link transmission
● Laser welded transmitter and epoxy cured receiver package
●Integrated micro-optics WDM filters for triple wavelength Tx/Rx1/Rxz operation at1310/1490/1550nm
● 1310nm lnGaAsP/InP MQWDFB laser diode transmission with InGaAs monitor photodiode
● 1490nm digital PIN photodiode with integrated 2.5Gbps,3.3Vcontinuous mode Super transimpedance-amplifier
● 1550nm PIN diode analog video receiver
● High optical isolation from extemal source and low optical cross-talk from intemal source
●-40°C to 85C industrial operating temperature range with excellent temperature dependent power tracking error
Applications
●GPON Triple play transceiver, ONU
●FTTH Triple-play
Standard
●Compliant with ITU-TG984-5 standard
●Compliant with Telcordia GR-468 reliability test criterion
●Compliant with RoHS6 standard
●Compliant with GR-326 connector qualification standard
1. Absolute Maximum Ratings
(*1):Only for soldering by iron and 10 seconds on leads only
2. Transmitter Optical-Electro Characteristics(TC=25°C,CW)
(*2):Launched into 9/125 mSMF
(*3):Pf=10xlog(Pf(Tc)/Pf(25℃)),Imhold(@Pf=2.0mW,25℃)
3. Digital Receiver Electro-Optical Characteristics(Tc=25°C,Vcc=3.3V)
4. Analog Receiver Optical-Electro Characteristics(TC=25°C,Vrp=5V)
5. Optical-Electro Characteristics of Module(TC=25°C,CW)
6. Key Materials
7. COMPONENTINFORMATION
8. Dimension Outline
9. Other Characteristics
●Single fiber pigtail type tri-directional OSA(Tridi) designed for full-duplex digital communication with an additional analog video receiver
● Asymmetric2.5Gbps downstream and 1.25Gbps upstream data link transmission
● Laser welded transmitter and epoxy cured receiver package
●Integrated micro-optics WDM filters for triple wavelength Tx/Rx1/Rxz operation at1310/1490/1550nm
● 1310nm lnGaAsP/InP MQWDFB laser diode transmission with InGaAs monitor photodiode
● 1490nm digital PIN photodiode with integrated 2.5Gbps,3.3Vcontinuous mode Super transimpedance-amplifier
● 1550nm PIN diode analog video receiver
● High optical isolation from extemal source and low optical cross-talk from intemal source
●-40°C to 85C industrial operating temperature range with excellent temperature dependent power tracking error
Applications
●GPON Triple play transceiver, ONU
●FTTH Triple-play
Standard
●Compliant with ITU-TG984-5 standard
●Compliant with Telcordia GR-468 reliability test criterion
●Compliant with RoHS6 standard
●Compliant with GR-326 connector qualification standard
1. Absolute Maximum Ratings
| Item | Unit | Min. | Max. | Note |
| Reverse Voltage(LD) | V | 2 | ||
| Forward Current (LD) | mA | 150 | ||
| Reverse Voltage(MPD) | V | 20 | ||
| Forward Current (MPD) | mA | 2 | ||
| TIA Supply Voltage | V | 4 | ||
| Reverse Voltage (Analog PD) | V | 20 | ||
| Forward Current (Analog PD) | mA | 10 | ||
| Operating Case Temperature | ℃ | -40 | +85 | |
| Storage Temperature | ℃ | -40 | +85 | |
| Lead Soldering Temperature | ℃ | 260 | (*1) |
2. Transmitter Optical-Electro Characteristics(TC=25°C,CW)
| Item | Symbol | TestCondition | Min. | Typ. | Max. | Unit |
| Threshold Current | Ith | CW,25℃ | 15 | mA | ||
| CW,-40~85℃ | 45 | mA | ||||
| Optical Output Power(*2) | Pf | CW, If=Ith+20mA,25℃ | 1.6 | 3.5 | mW | |
| CW, If=Ith+20mA,-40~85℃ | 1.0 | 4.5 | mW | |||
| Forward Voltage | Vf | CW, If=Ith+20mA | 1.2 | 1.5 | V | |
| Central Wavelength | c | CW, If=Ith+20mA,-40~85℃ | 1290 | 1310 | 1330 | nm |
| Spectrum Width(-20dB) | | CW, If=Ith+20mA,-40~85℃ | 1.0 | nm | ||
| Side Mode Suppression Ratio | SMSR | CW, If=Ith+20mA,-40~85℃ | 30 | dB | ||
| Monitor Current | Im | CW, If=Ith+20mA | 100 | 1300 | A | |
| Monitor Dark Current | Id | Vrp=5V | 100 | nA | ||
| Rise/Fall Time | r/f | CW,20%~80% | 0.1 | 0.2 | ns | |
| Tracking Error(*3) | TE | CW, Tc=-40~85℃ | -1.5 | 1.5 | dB |
(*2):Launched into 9/125 mSMF
(*3):Pf=10xlog(Pf(Tc)/Pf(25℃)),Imhold(@Pf=2.0mW,25℃)
3. Digital Receiver Electro-Optical Characteristics(Tc=25°C,Vcc=3.3V)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Supply Voltage | Vcc | No loads | 3.0 | 3.3 | 3.6 | V |
| Supply Current | Icc | No loads | 45 | mA | ||
| Operating Wavelength | 入 | 1480 | 1490 | 1500 | nm | |
| Sensitivity | Sen | 2.5GbpsPRBS23ER=10dB, BER=10E-10,NRZ | -29.5 | dBm | ||
| Overload | OL | -3.0 | 10 | dBm | ||
| PD Responsibility | R | 入=1490nm | 0.8 | A/W |
4. Analog Receiver Optical-Electro Characteristics(TC=25°C,Vrp=5V)
| Item | Symbol | TestCondition | Min. | Typ. | Max. | Unit |
| Operating Wavelength | 1550 | 1560 | nm | |||
| Responsivity | R | Vrp=5 | 0.9 | A/W | ||
| Bandwidth | BW | Rload=50Ω,-3dBpoint | 2.0 | GHz | ||
| Capacitance | C | Vrp=5,F=1MHz | 0.7 | pF | ||
| Dark Current | Id | Vrp=5 | 10 | nA | ||
| Second Order Distorsion | IMD2 | P=0dBm,fP=135MHz、fQ=189.25MH | -70 | dBc | ||
| Third Order Intermodulation | IMD3 | P=0dBm,fP=326.25MHz、fQ=333.25MHz、fR=335.25.25MHz | -80 | dBc |
| Item | Symbol | TestCondition | Min. | Typ. | Max. | Unit |
| Optical Return Loss | ORL | =1310nm | 6 | dB | ||
| =1490nm | 20 | dB | ||||
| =1550nm | 30 | dB | ||||
| Optical Crosstalk from Internal Source | Xtalk | 1310/1490nm | -47 | dB | ||
| Xtalk | 1310/1550nm | -47 | dB |
| Item | Symbol | TestCondition | Min. | Typ. | Max. | Unit |
| Optical Isolation from External Source | Rx1Piso | 入=1441~1450nm | 20 | dB | ||
| 入=1530~1539nm | dB | |||||
| Rx2Piso | 入=1260~1440nm | 30 | dB | |||
| 入=1540~1625nm | dB |
6. Key Materials
| Parts Name | Vendor Name | Part No. | Note |
| LDTO-CAN | L-TT-BD31-06 | ||
| PD chip | SU-P163E0-5D | TIAP/N:EOC1089 | |
| PINPD | TK0910A3B |
7. COMPONENTINFORMATION
| Component Description | P/N | Vendor | Customer |
| GPONONU Triplexer | 14330021 | jiuzhou |
8. Dimension Outline
9. Other Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Mode Field Diameter | 8 | 9 | 10 | m | ||
| Gladding Diameter | 123 | 125 | 127 | m | ||
| Optical Connector Insertion Loss | 0.4 | dB | SC/APC connector | |||
| Fiber Bending Radius | 30 | mm | ||||
| Fiber Diameter | 0.8 | 0.9 | 1.0 | mm | ||
| Fiber Length | 830 | 850 | 870 | mm | L | |
| Tension Force on Pigtail Fiber | 5 | N |
